VERTICAL CARTONER FOR COCONUT CREAM POUCHES

The TT-50 vertical cartoner for coconut cream pouches is an intermittent motion Top Load Cartoner that can reach speeds up to 100 cartons per minute. Designed and built for cartoning of coconut cream pouches, this model of TT-50 is a perfect piece of packaging automation equipment for secondary packaging of heavier, liquid-filled pouches that require a bag-in-a-box packaging format.

TT-50 - 100 CPM Speed

PRODUCT CARTONING PROCESS

Feeding
TT-1300 Red

TECHNICAL
SPECIFICATION

TYPE Top Load Vertical Cartoner
MODE Intermittent
SPEED Up to 100 CPM. Up to 100 cartons per minute
CARTON CLOSING Straight or reverse tuck and/or hot melt glue
CARTON MAGAZINE 48″ powered carton magazine
PRODUCT INFEED Lugged Incline Infeed Conveyor
CARTON FILLING Filling System That Fills 4 Cartons at the Same Time
CASE CLOSING Tuck Carton Closing System
CONTROLS Allen Bradley PLC/Drive

TT-50 TOP LOAD CARTONER OPERATION OVERVIEW

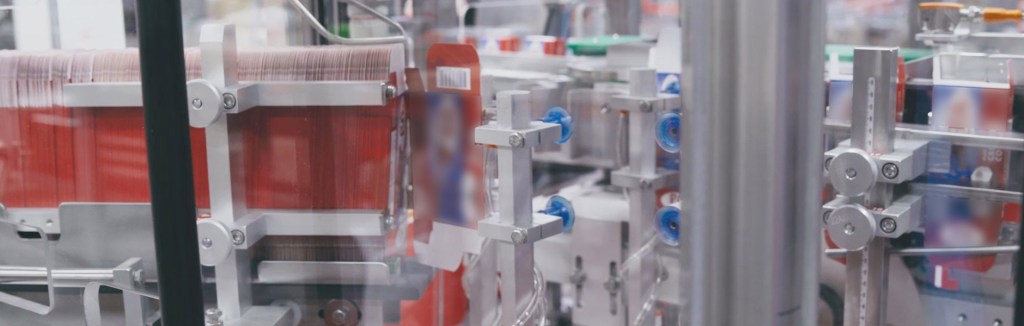

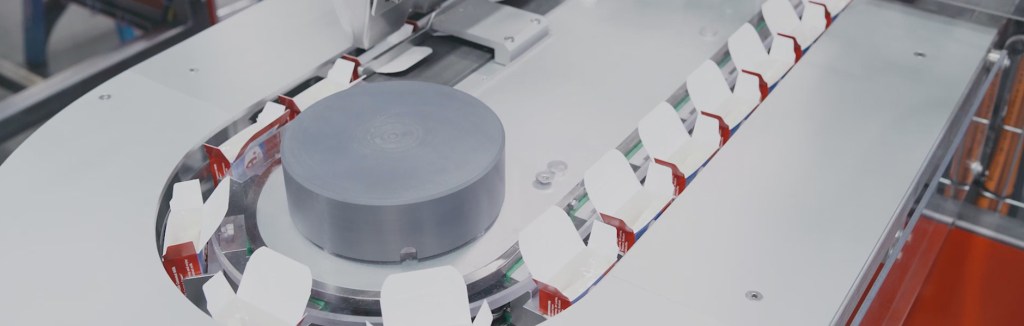

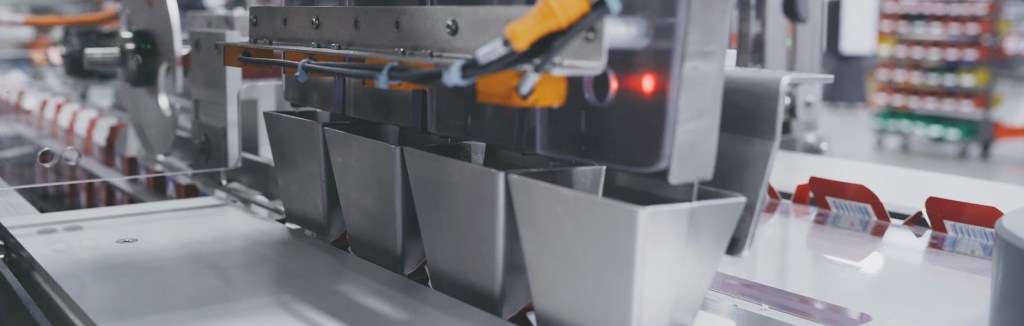

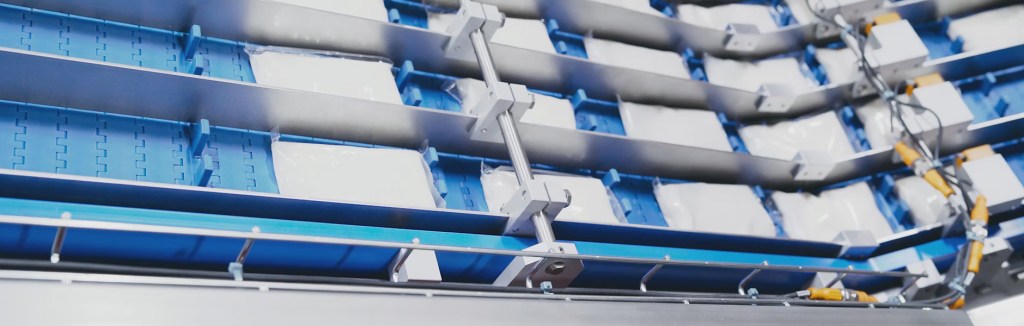

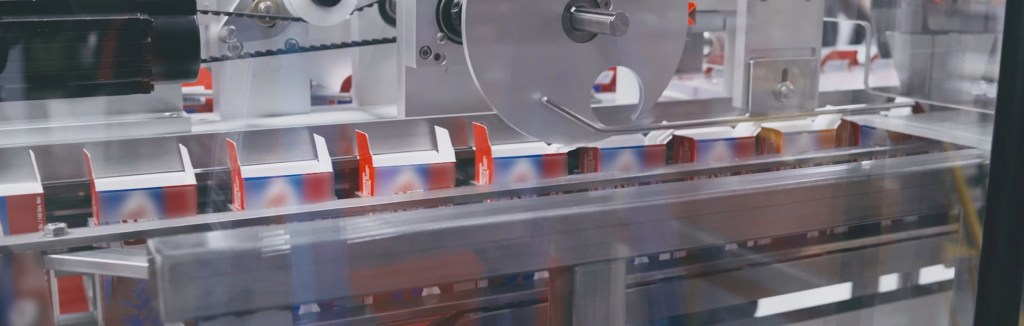

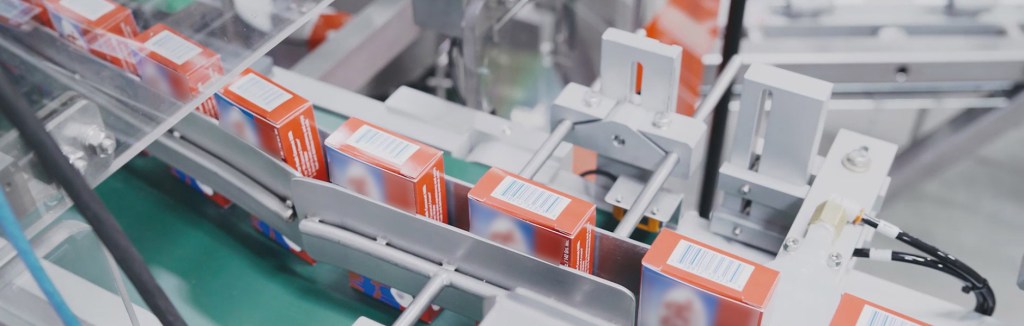

Flat Cartons are stored in the 48″ powered carton magazine with tubular steel frame, twin chain feed with shaft mounted pressure plate, and 1/8 H.P. drive motor with air clutch. Upon the product’s detection, a high-speed gear-driven rotary carton feeder with vacuum cup carton placers erects the carton. Filled and sealed pouches are received from the 4-lane pouch filling system and advanced to the lugged incline conveyor, which moves the pouches to the product loading station. Four pouches are released from the filling station into the cartons, filling four cartons at the same time. The carton flaps are closed using a series of stationary and mechanical plows, and then the carton is discharged.

DIMENSIONS & FLOOR PLAN

TT-50 packaging machine features an overall compact footprint, so you can rest assured it will fit your floor space. Reliable and portable with simple operation and a user-friendly interface, TT-50 will be up and running in no time. TT-50 is a powerful and efficient carton packaging machine that meets the highest standards with state-of-the-art simplicity, built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks.

TT-50 Coconut Cream Side View Diagram
TT-50 Coconut Cream Top View Diagram
