CARTONER MACHINE FOR CHEWING GUMS

The TT-100 cartoner machine for chewing gums is a continuous motion Vertical Cartoner that can reach speeds up to 1000 cartons per minute. It is designed and built for the packaging of chewing gums in small cartons. It is perfect for the primary or secondary packaging of free-flowing products like gums, candy, wrapped candy, candy blisters, small candy pouches, and sachets.

This packaging equipment is available with different coding and labeling solutions, patented volumetric cup fillers, or a computer scale interface. Integration with a Case Packer or a Tray Packer is also an option.

TT-100 1000CPM Icon
TT-100 Main Image

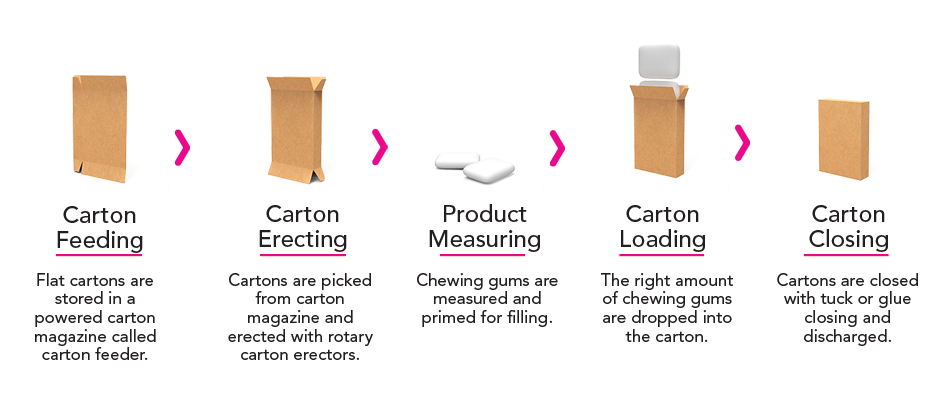

PRODUCT CARTONING PROCESS

PRODUCT CARTONING PROCESS
TT-100 White Logo

PRODUCT CARTONING VIDEO

TT-100 Red Logo

TECHNICAL
SPECIFICATION

TYPE Top Load Cartoner
MODE Continuous Motion
CARTON POCKET CENTER 1.875, 2.5, 3.75, and 5.0 inches.
SPEED Variable to 1,000 CPM, depending upon application.
CARTON FEED 48+’’ powered carton magazine with rotary erector; dual micro-pump vacuum system
CARTON CLOSING Straight or reverse tuck, hot melt glue, tooling for special carton styles
CARTON FILLING Patented volumetric cup fillers or computer scale interface
FRAME Welded tubular stainless steel; hinged Lexan cover panels with stainless steel frames and safety electrical interlocks
DRIVE Servo driven with line shaft
CONTROLS Allen Bradley PLC or to customer spec; Allen Bradley components, alphanumeric self-diagnostics.

TT-100 VERTICAL CARTONER

The TT-100 cartoner machine for chewing gums Top-Load Cartoner supports multiple carton sizes and features a quick and easy servo-assisted change-over. The flat cartons are stored in a 48+’’ powered carton magazine with a rotary erector and dual micro-pump vacuum system that erects the carton and places it into the carton pocket. Chewing gums and measured and dosed slat counting system for precise product/piece count/fill. When filled, the carton goes through the sealing station, where it is sealed. The inspection and rejection station detects the cartons with open flaps and rejects all the faulty cartons. Product count verification system that allows only the good product to be discharged from the machine.

The TT-100 features stainless steel construction and a simple open design, which allow for easy washdown of all exposed surfaces.
