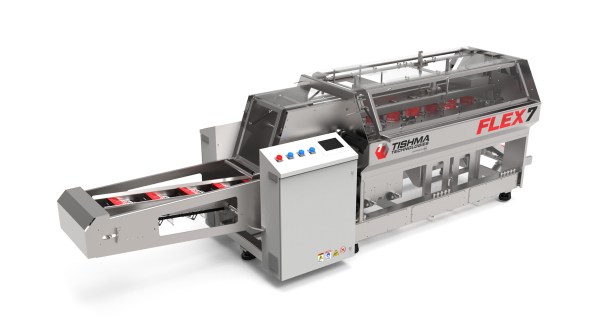

Flex7Pre-made Pouch Fill & Seal Machine

The Flex7 Pre-made pouch fill & seal machine can pack almost anything into a pouch. With one touch changeovers, a compact overall footprint, a wide range of bag sizes, decreased downtime, and increased efficiency, Flex7 is set to dominate the market!

ONE MACHINE - MANY POUCH SIZES

ONE MACHINE – MANY POUCH SIZES

CHANGEOVER TO ANY POUCH SIZE IN LESS THAN 30 SECONDS

Flex7 is capable of running a variety of pouch types within its pouch size range, regardless of material finish! Also, say “goodbye” to downtime and “hello” to efficient pouch packing. Custom recipe presets allow for fast 30-second push-button changeovers.



Key Features

FLEX7 CAN FEATURE A VARIETY OF OPTIONS, DEPENDING OF YOUR PACKAGING NEEDS

Every piece of equipment is custom made according to clients’ demands. Choose between various features, product infeed options and upstream and downstream options. Customize your pouch packing process and reach maximum efficiency for an affordable price!

Applications

Free-Flowing Candy Wrapped Candy

Industries

Candy Packing

Request a Quote

Features and Options

  • Washdown Icon

    WASHDOWN STRUCTURE

    Washdown structure allows for cleaning the machine with a spray of water.

  • Seal Cooler Icon

    SEAL COOLER

    Cools the area of the pouch. Recommended for heat sensitive products.

  • Nitrogen Gas Icon

    NITROGEN GAS FLUSHING

    Fills the pouch with nitrogen before sealing the pouch. Keeps the product fresh.

  • Pouch Deflator Icon

    POUCH DEFLATOR

    Eliminates excessive air from pouch. Removes oxygen and keeps the product fresh.

  • DUST SHROUDER

    Remove excess dust generated during filling stage. For non-free-flowing products.

  • Code and Date Printer Icon

    CODE/DATE PRINTER

    Prints a code/date on the pouch prior to pouch opening. Includes camera verification.

  • HOLE PUNCH / DIE CUT

    Punches or cuts a hang hole aſter pouch sealing, for retail display hook.

  • Bottom Pouch Support Icon

    BOTTOM POUCH SUPPORT

    Conveyor system provides additional support for heavier pouches.

  • Vibratory Settler

    VIBRATORY SETTLER

    Provides improved product settling inside the pouch.

PRODUCT INFEED OPTIONS

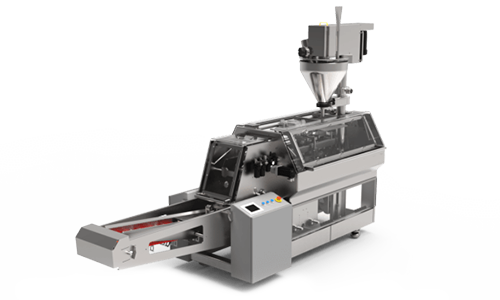

AUGER FILLER

Suitable for non free flowing products and products that generate dust like coffee, flour and other similar powders.

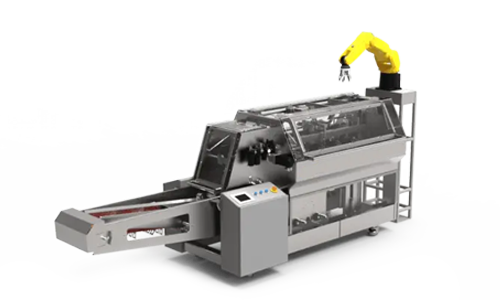

ROBOTIC INTEGRATION

Suitable for non free flowing products and products that generate dust like coffee, flour and other similar powders.

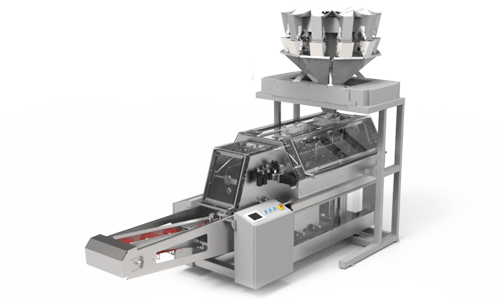

MULTIHEAD WEIGHER/SCALE

Allows more packs per weight of product, and more packs per shiſt due to improvement of weighing accuracy. Suitable for complex, multiple component products like cereal mix.

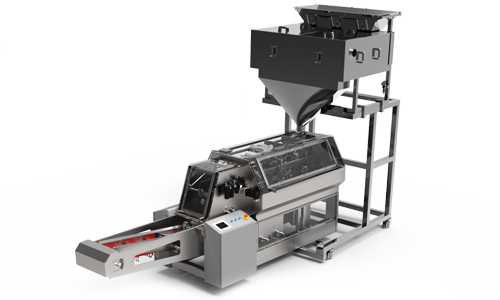

VIBRATORY COUNTER / FILLER

Suitable for packaging application where measuring precision and accuracy are crucial and for products that are uneven, such as wafers, grains, dried food, nuts and fruits.

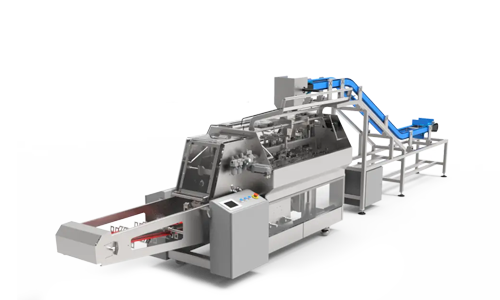

HIGH-SPEED CONVEYOR

Recommend for transferring products from one location to another quickly.

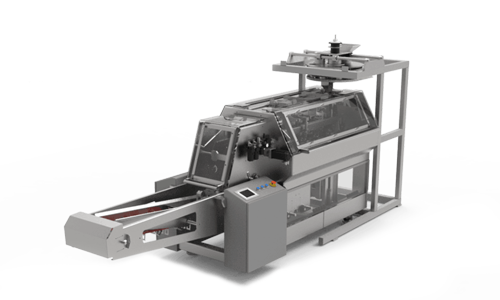

VOLUMETRIC CUP FILLER

Recommended for free-flowing solids like rice, candies or frozen peas or powders that don’t generate dust.

UP/DOWNSTREAM OPTIONS

LABELER Automatically apply labels to pouches and/or cases
CHECKWEIGHER Improve weight control and verification
PALLETIZER Stack ready-to-ship pallets. Robotic and traditional palletizer are available
PALLET OUT OPTIONS Buffer conveyors and Stretch wrapper
REJECT STATION Discover and remove scrap pouches automatically
METAL DETECTOR Detect all unwanted metal particles
CASE PACKER Pack pouches in a variety of case/boxes

MODELS

MACHINE PITCH 10″
SPEED 40 PPM
DIMENSIONS L: 160” W: 54” H: 57”
POUCH SIZE RANGE Width 4-16” – Height 6-21″ – Gusset 0-6″
INPUT VOLTAGE 240-480 V

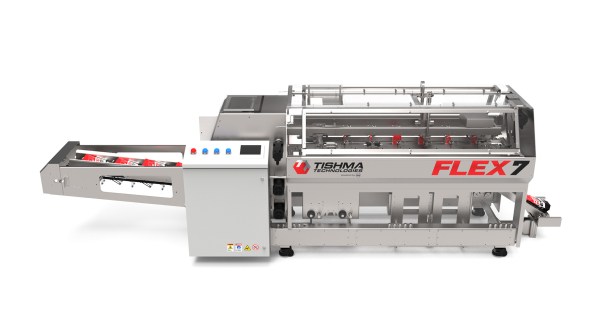

SIDEVIEW

 TOPVIEW

BAG OPTIONS

STANDUP POUCH

Gusset allows for a pouch to stand on its own, allowing for the in-store product presentation to be much easier.

WINDOWED POUCH

The window in the front allows consumer to see the product, especially important for organic or specialty products.

SEALED POUCH

Sealed pouch is perfect for single portion products and lower net weigh packaging format.

RESEALABLE / ZIPPER POUCH

Perfect for packaging with higher net weigh. Zipper keeps the product fresh until the next use.

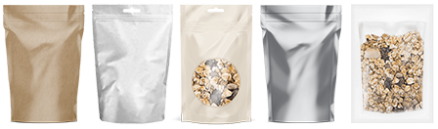

MATERIAL FINISH POUCHES

Metalized pouch, Clear Pouch, Kraft Paper Pouch, Rise Paper Pouch, Foil Pouch, Matte / Satin Pouch
