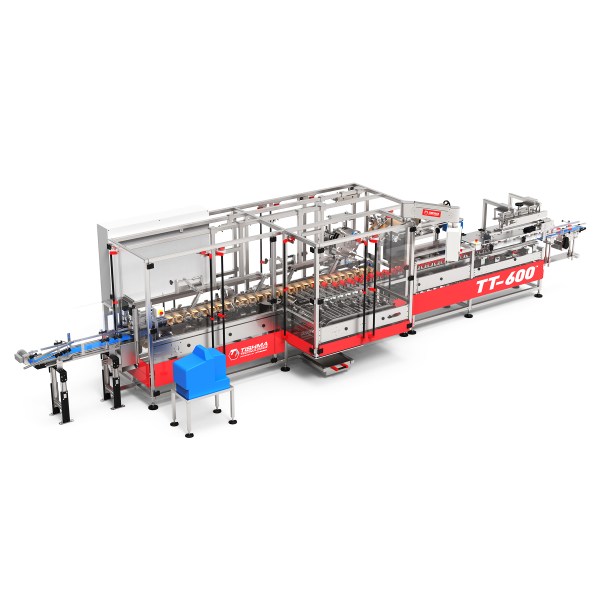

TT-600 Horizontal Cartoner MachineFlexibility Above All

The TT-600 side load cartoner can reach speeds up to 500 CPM, and it is perfect for continuous motion packaging applications. It is available with automatic product transfer, servo-driven collating devices, extended article bucket conveyors, and product confines.

Modular coupon placers, code engravers, or printers make this packaging machine a good solution for labeling as well. Flexo-Tray® models coupled with Smart Loader, Smart Flighter, and Sequential Transfer product handling devices, offer unique benefits and system design flexibility.

Download Brochure

Key Features

  • Compact Footprint
  • Quick & Easy Changeovers
  • Versatile Design
  • Servo Control
  • Stainless Steel Frame
Automatic product transfer, collating devices, and extended article bucket conveyors provide you with fully automated product handling. Available with coupon placers, code debossers and printers, TT-600 can also be a labeling solution.

Applications

Ampoules Bottles Packaging Candy Bars Candy Blisters Candy Pouches Chocolate Bars Cookie Slugs Dosing Droppers Pill and Tablet Blisters Squeezable Tubes Syringes

Industries

Candy Packing Medical Supplies Packing

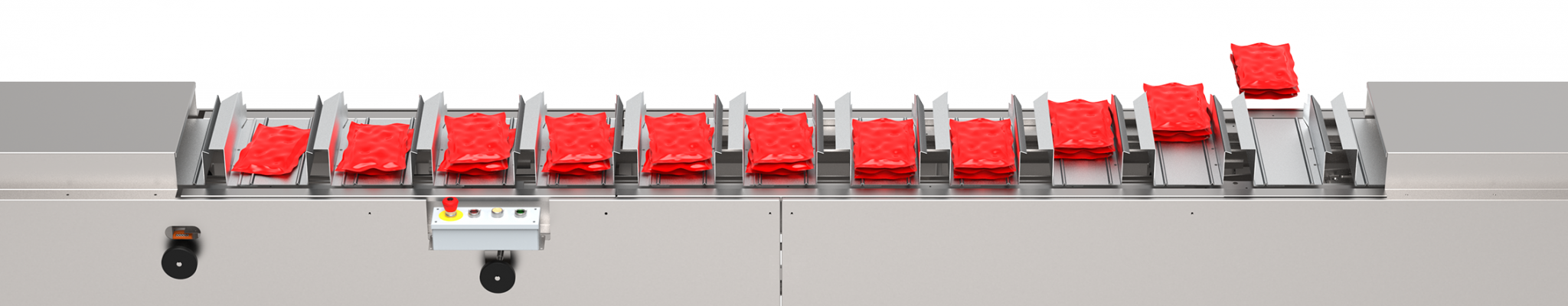

Bringing Back Efficiency in Horizontal Cartoning

  • TT-600 Horizontal Cartoner Machine Receiving

    RECEIVING

    The buckets open to their widest dimension for efficient transfer, gentle product handling and pack pattern flexibility.

  • TT-600 Horizontal Cartoner Machine Orienting

    ORIENTING

    The buckets begin to contract, shaping and sizing bags, orienting and aligning pouches, slugs, or other products in single or multiple counts.

  • TT-600 Horizontal Cartoner Machine Conditioning

    CONDITIONING

    The buckets continue to contract. Articulation may be linear; a single motion, or phased; a series of opposing motions for products that require substantial conditioning.

  • TT-600 Horizontal Cartoner Machine - Optimizing

    OPTIMIZING

    Finally, the buckets adjust to the optimum width for efficient and gentle product loading. From product transfer to carton loading, the sequence is smooth, continuous, and predictable.

machine-horizontal-cartoners

FLEXO-TRAY

BRINGING BACK EFFICIENCY IN HORIZONTAL CARTONING

TT-600 side-load cartoning machine represents the new standard of excellence in horizontal cartoning automation. Patented design innovations are best reflected in the Flexo-Tray® models coupled with our Smart Loader. It contains Smart Flighter, Sequential Transfer product handling devices, and it offers unique benefits accompanied by system design flexibility.

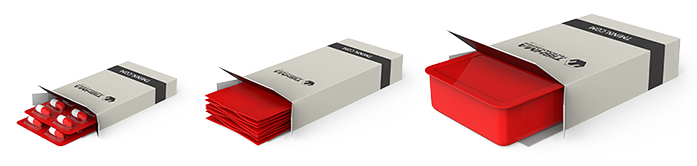

TT-600 CARTON STYLES & PRODUCT APPLICATION

Bag-in-a-box  ●  Long goods  ●  Pouches  ●  Stick-Packs  ●  Frozen Food

tt-60 applications




TECHNICAL SPECIFICATIONS

TYPE Side Load Cartoner
MODE Continuous Motion
CANTERS 1.875″ to 16″ depending upon model
SPEED Variable to 500 CPM, upon model and application
CARTON FEED Powered carton magazine and rotary carton placer
PRODUCT LOADING Article buckets articulate in to carton score lines
SENSING SYSTEMS No product/ no carton and no carton/ no load (with automatic product discharge)
CARTON CLOSING Straight or reverse tuck, or hot melt glue
FRAME Welded tubular stainless steel of open, sanitary design
DRIVE Servo driven with line shaft
CONTROLS Allen Bradley PLC and components
