SafeSeal AI Machine Food Inspection
SafeSeal AI Machine Inspection

SafeSeal-AIA.I. Vision Seal Inspection

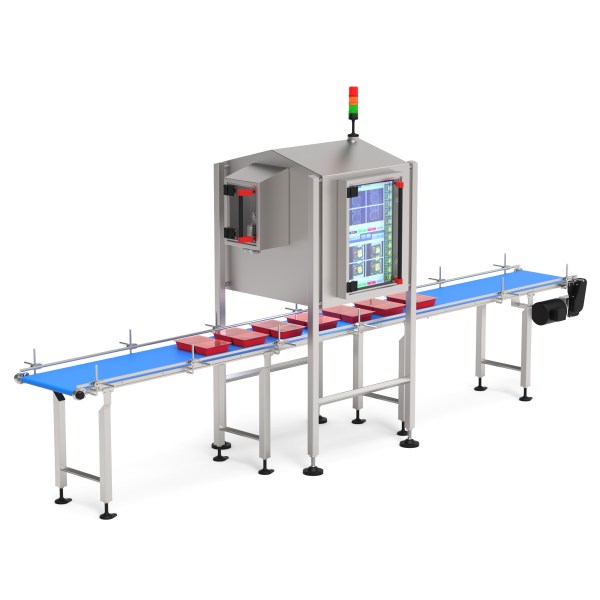

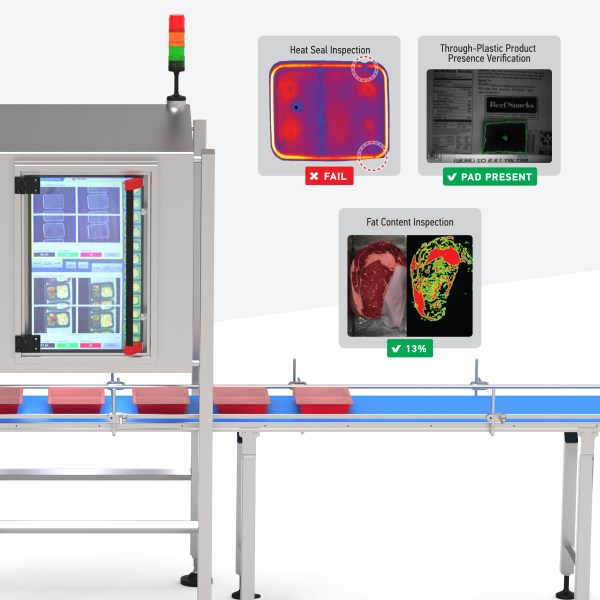

Tishma Technologies has harnessed the power of A.I. to offer an unbelievably easy to use in-line heat seal inspection system for the food and medical industries. We applied our deep-learning A.I. vision tools to thermal images to find most sealing defects – including those that are almost impossible to find with rules-based vision tools or even standard vacuum-check inspections. This PC-based, turnkey inspection system includes everything you need to reliably inspect your heat sealed trays or packaged product at a rate of 300 scans/minute.
Sell Sheet

[youtube https://www.youtube.com/watch?v=RUB-S7s37i0?si=Q-8r24rKmn1Xp-s6]

Key Features

  • Deep Learning A.I. Trained by Example
  • Optimized for Factory Automation
  • Extensive Database/ERP Connectivity
  • Optional Text and Code Verification
  • Visual Reject Notification and/or Upstream/Downstream
  • Signal to Line Stop
  • Positive Compressed Air / Cooled Cabinet
  • Large HMI Color Touchscreen
  • Customer Dictated Rejection Integration
  • Heat Sealer Platen & Gasket Verification

Benefits

  • Fast, User-Friendly Deployment
  • Improved Line Speed and Efficiency
  • Improved Quality Control
  • All Color Graphics
  • Bilingual Inclusion (English/Spanish)
  • Operational in Ambient to Freezer Temperature Environments

TECHNICAL SPECIFICATIONS

SPEED Up To 300 Scans/Min.
DIMENSIONS W: 40” L: 44” H: 89” (variable)
INSPECTION TYPE Thermal, Visible Spectrum
FRAME Stainless Steel IP69K Rated
ELECTRICAL 440/3/60hz Nema 4X
CONVEYOR Included (length based on application)
TEMPERATURE RATING -20 to 110ºF
DATA STORAGE 20TB Locally (unlimited with customer connected database)
