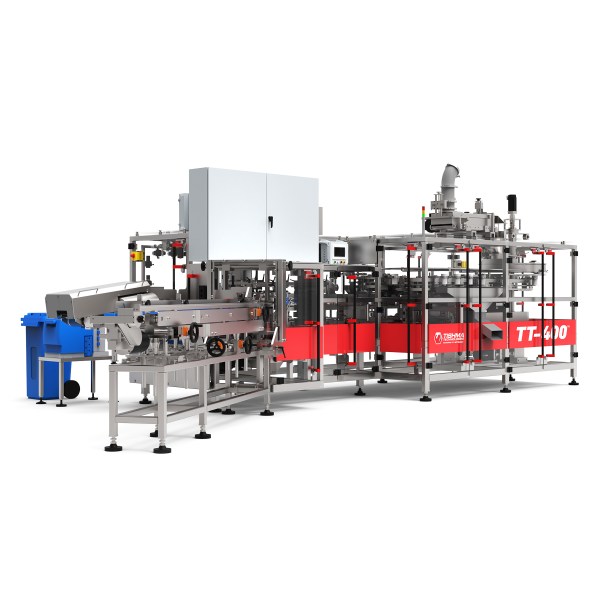

TT-400 Vertical CartonerHigh Speed – High Efficiency

The TT-400 is a continuous motion vertical carton filling machine that can reach speeds of up to 750 CPM. It is available with MemoryTrack for computer scale interface or with Patented UltraTrack high-speed volumetric cup filler that provides no-carton/no-product, no-product/no-carton functionality.
Download Brochure

Key Features

  • Compact Footprint
  • Quick & Easy Changeovers
  • Versatile Design
  • Servo Control
  • Stainless Steel Frame
Carton filling is accomplished by utilizing patented volumetric cup fillers, computer scale, or auger interface. The TT-400 is available with a high-speed laser printer, integrated metal detector, check weigher, and open flap detection and rejection system.


Candy Pouches Chewing Gum Free-Flowing Candy Wrapped Candy


Candy Packing


Candy  ●  Gum  ●  Pouches  ●  Stick-Pouches  ●  Free-Flowing Products

TT-400 Product Applications


TYPE Top Load Cartoner
MODE Continuous motion
CARTON POCKET CENTER 4,6,8,10,12, or 16 inches
SPEED Variable to 750 CPM, depending and application
CARTON FEED 48+” powered magazine with rotary carton erector
CARTON CLOSING Straight or reverse tuck, hot or cold glue, tooling for special carton styles
CARTON FILLING Patented volumetric cup fillers; computer scale or auger interface
FRAME Welded tubular stainless steel; lexan cover panels with stainless steel frames and safety interlocks
DRIVE Servo driven with line shaft
CONTROLS Allen Bradley PLC, components, alphanumeric self-diagnostic
ADJUSTMENTS Lead screws with calibrated scale references
DIMENSIONS Request specific model floor plan
POWER REQUIREMENTS Wired to accommodate your plants electrical requirements
AIR REQUIREMENTS Approx. 6.5 CFM 60 psi
TOOLING Available for tuck, glue and special carton styles
