VERTICAL CARTONER FOR WHISKEY BOTTLES

The TT-50 vertical cartoner for whiskey bottles is a continuous motion Top Load Cartoner that can reach speeds up to 140 cartons per minute. Designed and built for cartoning of whiskey bottles, it is perfect for secondary packaging of bottles containing spirits, wine, whiskey, or any liquor or beverage.

TT-50 140 CPM Speed

PRODUCT CARTONING PROCESS

Feeding
TT-50 Red Logo

TECHNICAL
SPECIFICATION

TYPE Vertical Cartoner
SPEED Up to 140 CPM

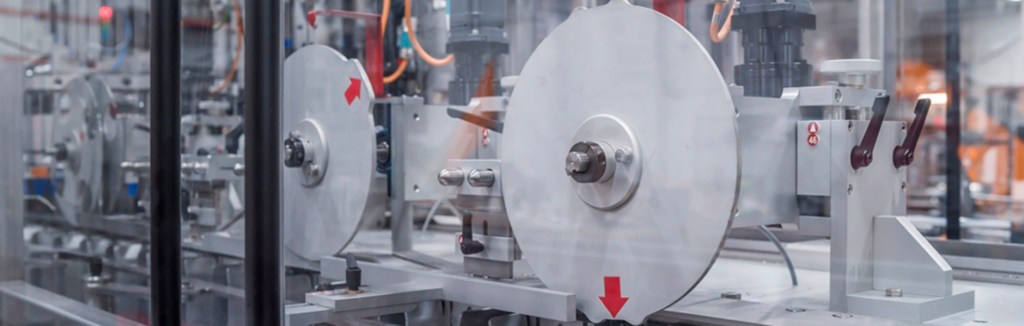

CARTON MAGAZINE 36+” powered magazine with rotary carton feeder
PRODUCT INFEED Morrison Timing Screw

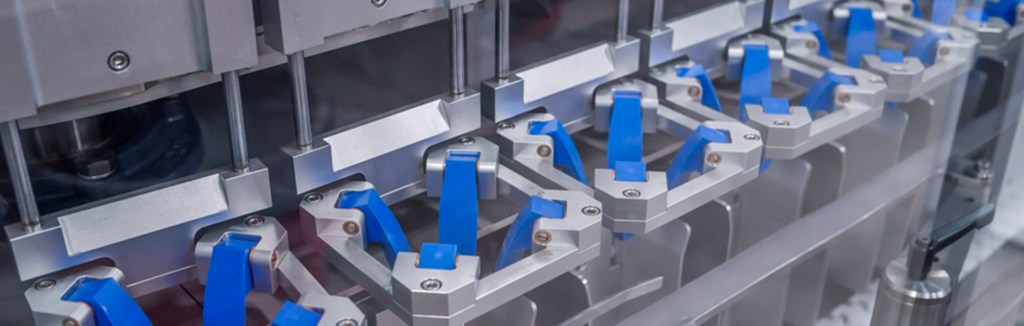

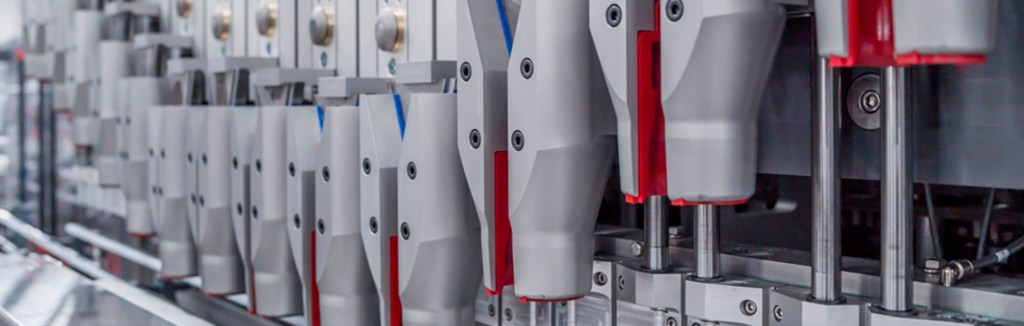

CARTON FILLING Product Grippers
CARTON CLOSING Tuck Carton Closing
CONTROLS Allen Bradley PLC/Drive

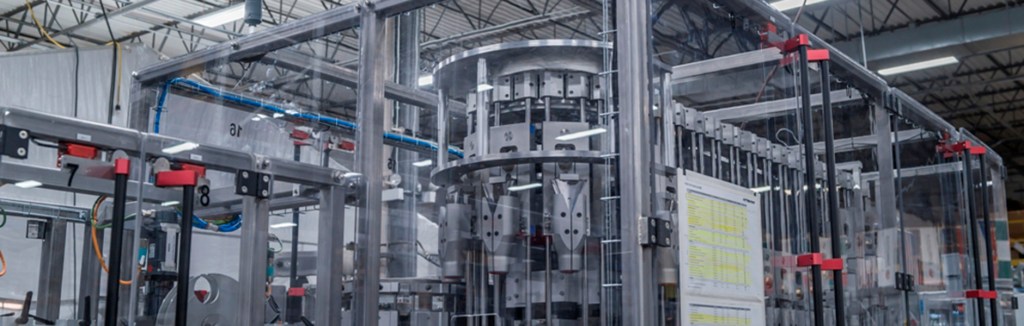

TT-50 VERTICAL CARTONER – OPERATION OVERVIEW

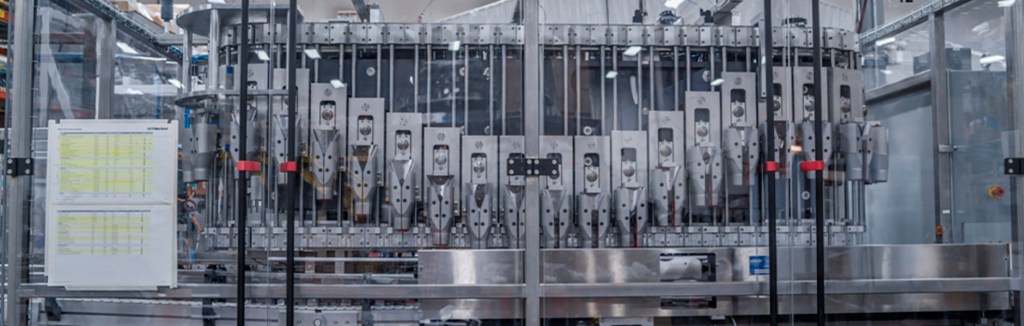

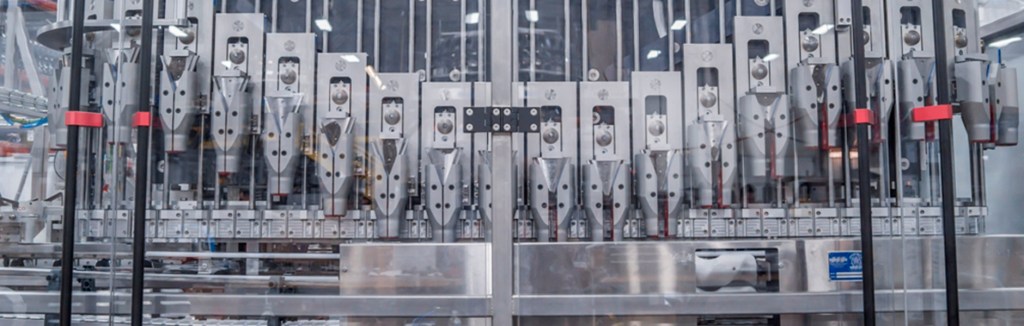

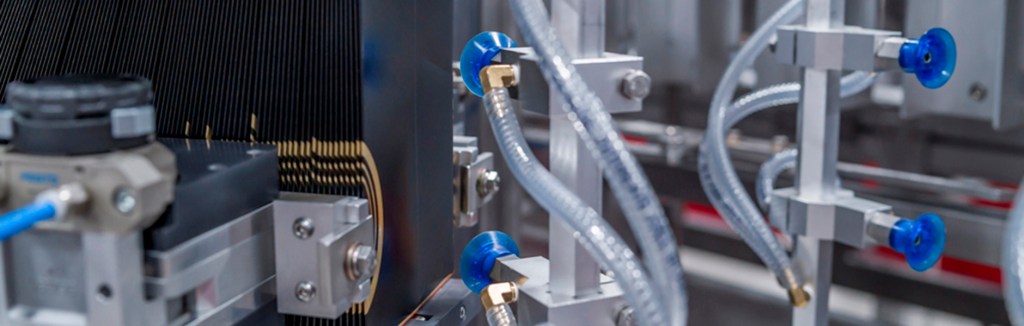

The TT-50 Horizontal Cartoner features automatic bottle loading and tuck carton closing. The operator loads the cartons into the carton magazine. The rotary feeder picks the carton from the magazine and delivers it into the carton track. Carton travels down carton track and comes to the bottom closing assembly, where the plow system closes and glues the carton’s bottom flaps. The bottle feeder takes the bottle from the Morrison Timing Screw and inserts it into the carton. The top closing assembly tuck-closes top flaps of the carton. The closed carton is transferred onto the discharge conveyor or transferred for further processing. The TT-50 features stainless steel construction and a simple open design, which allow for easy washdown of all exposed surfaces.

DIMENSIONS & FLOOR PLAN

TT-50 features an overall compact footprint, so you can rest assured it will fit your floor space.

TT-50 features washdown construction which allows for machine cleaning and maintenance according to all sanitary standards in the Pharmaceutical Industry.

TT-50 is a powerful and efficient cartoner that meets the highest standards with state-of-the-art simplicity, built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks.

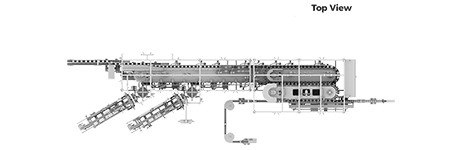

TT-50 Floorplan Top View Diagram

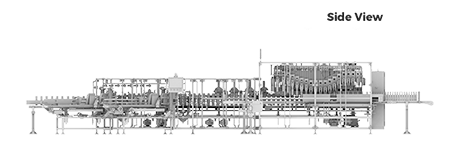

TT-50 Floorplan Side View Diagram
