HORIZONTAL CARTONER FOR MICROWAVE BACON

The TT-600 horizontal cartoner for microwave bacon is a continuous motion Side Load Cartoner that can reach speeds up to 50 cartons per minute. Designed and built for cartoning of microwave-ready pouches, it is perfect for secondary packaging of microwave bacon, microwave-ready meals, frozen vegetables, and other instant food products.

TT-600 Speed Icon

PRODUCT CARTONING PROCESS

Microwave Bacon Carton Load Process
TT-600 Red Logo

TECHNICAL
SPECIFICATION

TYPE Side Load Cartoner
SPEED Up to 50 CPM
PRODUCT INFEED Stainless Steel Article Buckets
CARTON FILLING Product Pushers and Product Confiners
VERIFICATION Open Flaps Detection and Rejection Station
CARTON CLOSING Nordson Hot-Melt Glue System
CONTROLS Allen Bradley PLC and components

TT-600 SIDE LOAD CARTONER

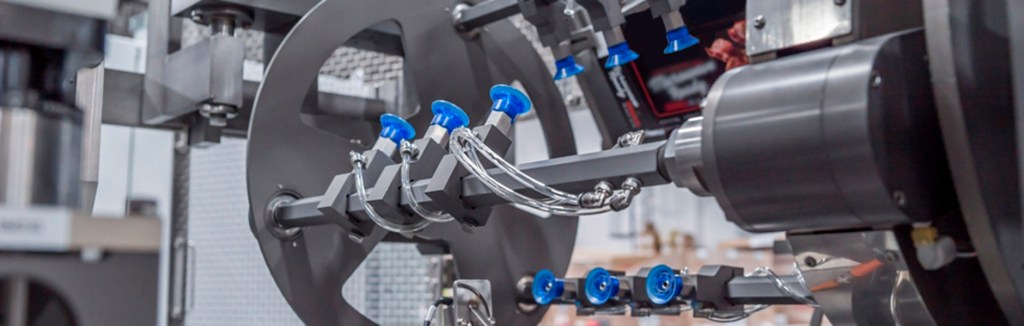

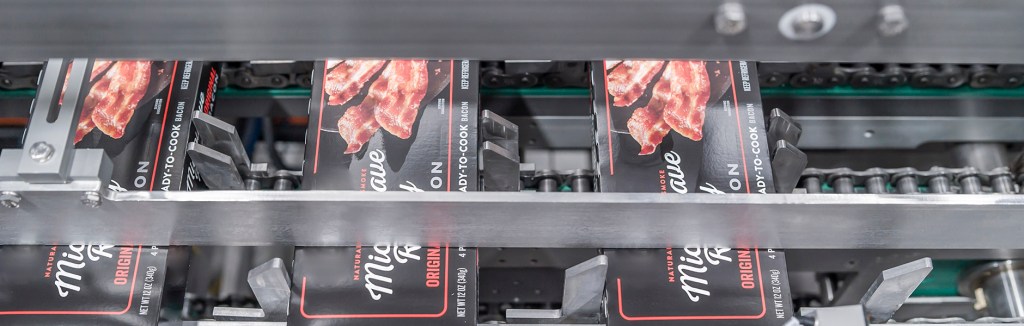

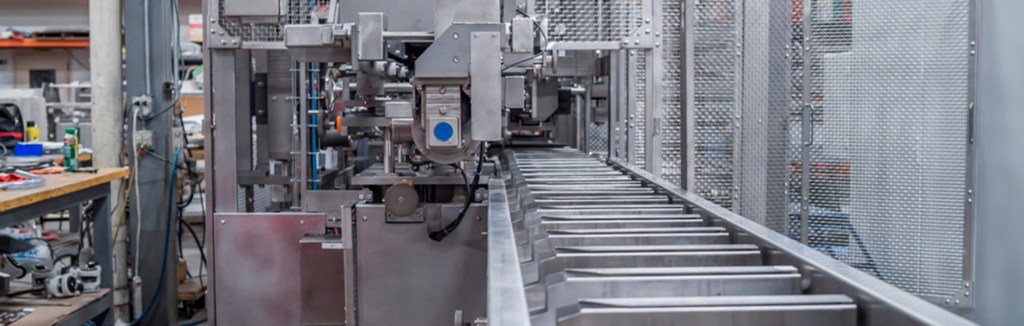

The TT-600 Horizontal Cartoner supports multiple carton and product sizes and features a quick and easy servo-assisted change-over. The packs of Microwave Bacon are manually placed into the precision-milled article buckets. Flat Cartons are stored in the 48″ powered carton magazine with a nickel-plated tubular steel frame, twin chain feed with shaft mounted pressure plate, and 1/8 H.P. drive motor with air clutch. Upon the product’s detection, a high-speed gear-driven rotary carton feeder with vacuum cup carton placers erects the carton. The product is gradually and gently pushed into the carton while an overhead confiner ensures no jamming during loading. A Nordson ProBlue 7 gun glue system applies glue on carton flaps. The carton flaps are closed using a series of stationary and mechanical plows, and then the carton is discharged.

DIMENSIONS & FLOOR PLAN

TT-600 features an overall compact footprint, so you can rest assured it will fit your floor space.

Reliable and portable with simple operation and a user-friendly interface, TT-600 will be up and running in no time.

Built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks, TT-600 is a powerful and efficient case packer that meets the highest standards with state-of-the-art simplicity.

TT-600 Dimension Top View Floor Plan
TT-600 Dimension Side View Floor Plan
TT-600 White Logo

CAN BE INTEGRATED WITH

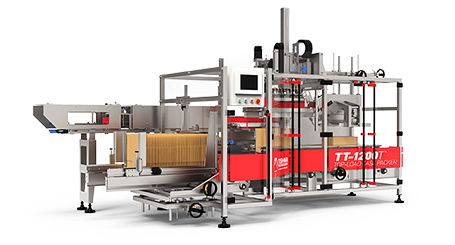

Case Packer Machine Image

CASE PACKERS

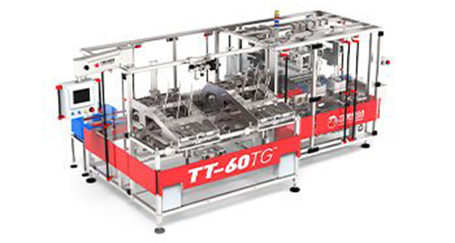

Tray Packer Machine Image

TRAY PACKERS

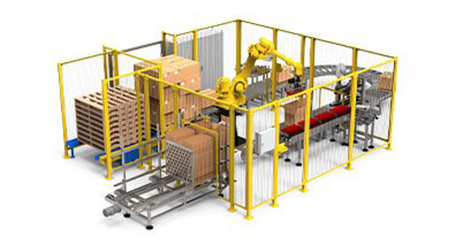

Palletizer Machine Image
