CASE PACKER MACHINE FOR CARTONS AND BOXES
The TT-1200 is an intermittent motion case packer that can reach speeds up to 20 cases per minute. It is designed and built for case packing of cartons and boxes in multiple patterns in corrugated cardboard boxes. Its compact footprint allows you to save on your floor space, while its simplicity and ergonomic design will enable you to pack and prepare your products for shipping and stacking quickly and efficiently.
PRODUCT CASE PACKING PROCESS
PRODUCT CASE PACKING VIDEO
|Top Load Case Packer
|Up to 20 CPM
|MIN. CASE SIZE
|6″ x 4″ x 3″
|MAX. CASE SIZE
|18″ x 12″ x 12″
|Manual, Robotic, with Collation System
|Tape and/or Hot-Melt Glue
|Width: 100″ Length: 168″ Height: 79″
|Allen Bradley PLC/Drive
TT-1200T TOP LOAD CARTON CASE PACKER

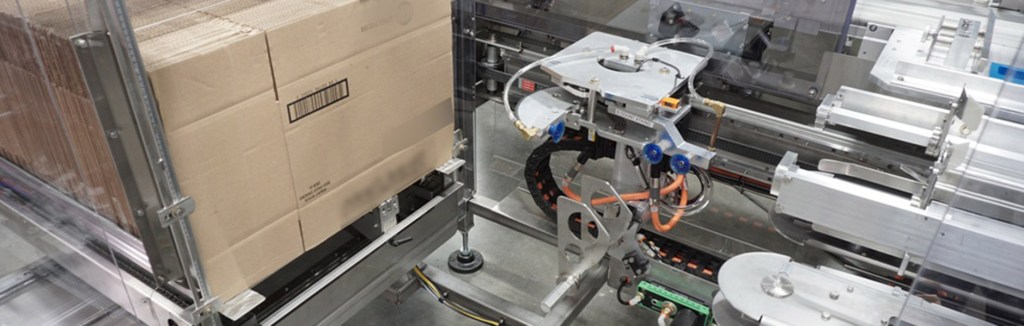

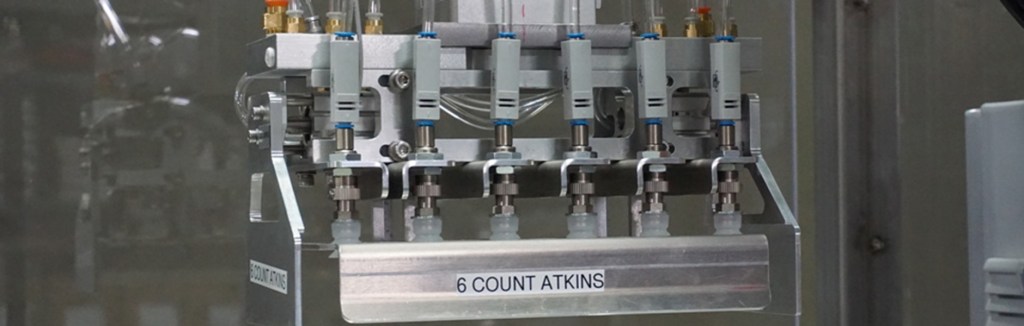

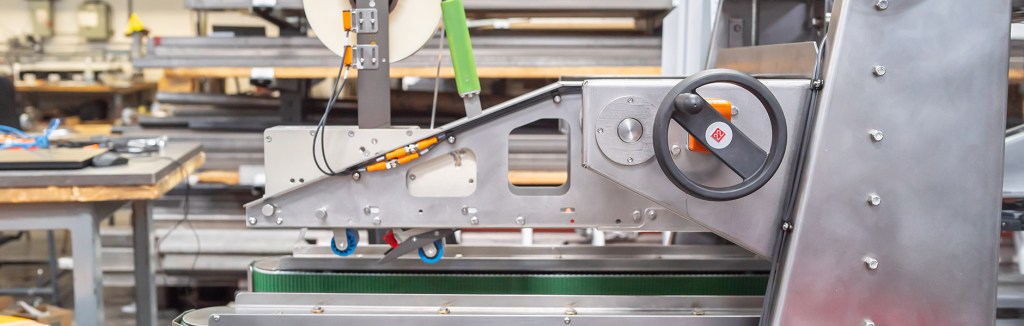

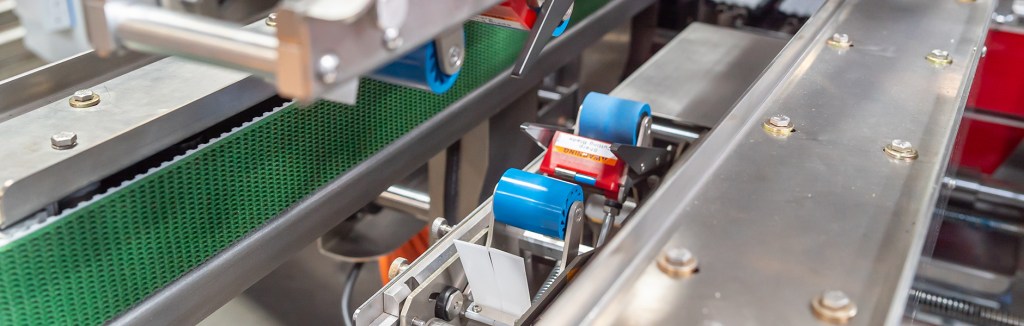

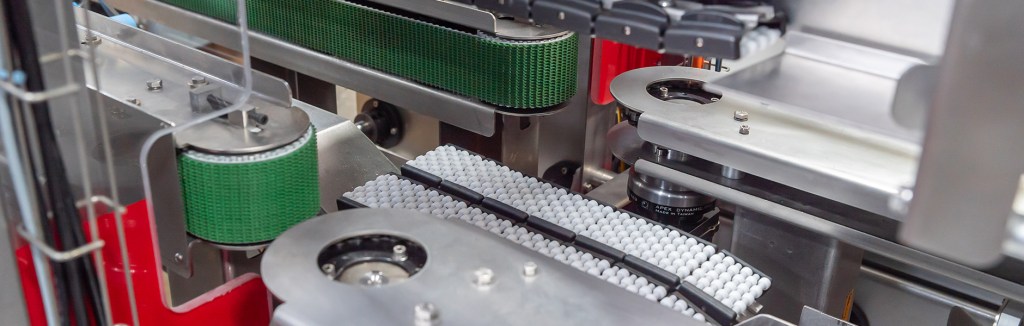

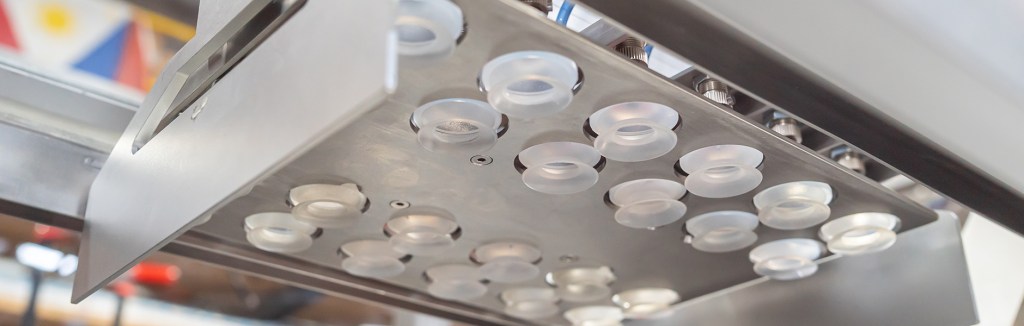

The TT-1200T Case Packer supports multiple corrugated case sizes and features quick and easy servo-assisted change-over. Servo driven collating device collates the cartons, while precise gantry pick-and-place system loads the boxes into the case, arranging them into custom patterns. The TT-1200T Case Packer is available with two types of closing systems: tape or hot melt glue. Stainless steel construction and simple open design allow for easy washdown of all exposed surfaces.

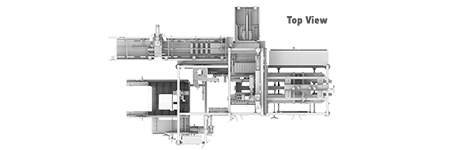

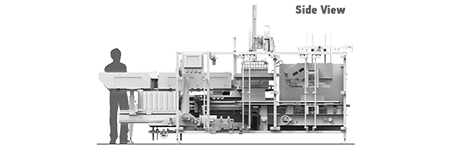

DIMENSIONS & FLOOR PLAN
TT-1200T features an overall compact footprint so you can rest assured it will fit your floor space.
Reliable and portable with simple operation and user-friendly interface, TT-1200T will be up and running in no time.
Built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks, TT-1200T is a powerful and efficient case packer that meets the highest standards with state-of-the-art simplicity.
