Openstack Palletizer Dimensions

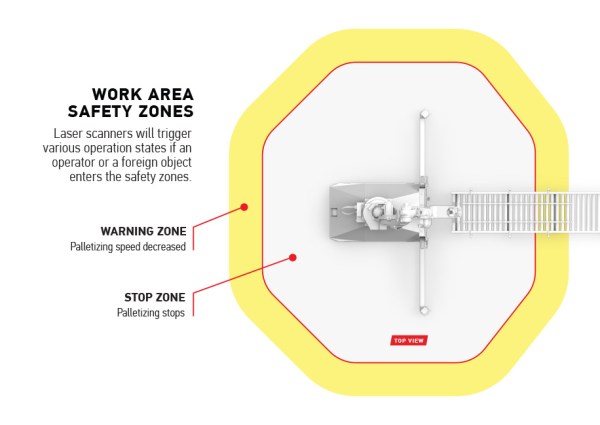

Openstack Palletizer Work Zone

OpenstackPortable, Guardless Palletizer

The Tishma Technologies Openstack Palletizer is compact and portable, allowing your production to minimize operator involvement and move pallets out the door quickly. The Openstack Palletizer provides less clutter in your plant with an open, guardless layout. You can now move and deploy quickly between your production lines with fast cycle times to accommodate your throughput rates. Our dual pallet docks allow for palletizing two different patterns or as buffer for full pallet storage.
Download Brochure

Key Features

  • Less clutter in your plant with an open, guardless layout.
  • Move and deploy quickly between your production lines.
  • Fast cycle times to accommodate your throughput rates.
  • Dual pallet docks allow for palletizing two different patterns or as buffer for full pallet storage.

Benefits

  • Safety Fence Icon

    No Safety Fences

    Less clutter with the open, guardless layout

  • Custom EOAT

    Custom End of Arm Tooling

    Compatible with all standard cases

  • Fast Operation Icon

    Fast Operation

    Up to 15 picks per minute

  • Load Capacity

    High Payload Capacity

    Up to 40 lbs.

  • Openstack Stop Contact Icon

    Safety Laser Scanners

    Trigger various operation states (warning and stop zones) if an operator or a foreign object enters the safety zones.

  • Compact Footprint Icon

    Portability

    Move and deploy quickly between your productions lines.

  • Dual Pallet Icon

    Dual Pallet Docks

    Allow for palletizing two different patterns or as buffer for full pallet storage.

Technical Specifications

PAYLOAD CAPACITY
Up to 40 lbs
CYCLE TIME Up to 15 Picks/Minute
OVERALL DIMENSIONS
W:5′ L:11½’ (deployed); W:5′ L:3′ (folded)
OVERALL MASS 2200 lbs
FRAME Stainless Steel 304
POWER REQUIREMENT 20A 480V 3PH
AIR REQUIREMENT
100psi, 1/2″ line
DRIVE Yaskawa YRC1000 (robot controller)
ELECTRICAL CONTROLS Keyence/SICK
HMI Yaskawa Smart Pendant
SAFETY
Area Safety Sensors Type3, SIL2, Cat3, and PLd
ENVIRONMENT REQs. Low Dust
ROBOT Yaskawa GP25
FLOOR MOUNT Four Floor Anchor Bolts
EOAT Vacuum Gripper
MAX. PALLET HEIGHT 7’
PALLET SIZES All Standard Pallets
