HIGH-SPEED TRAY PACKER FOR BLISTERS

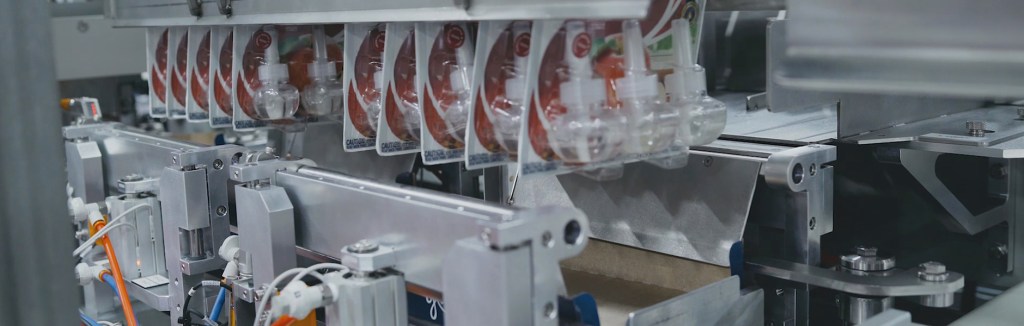

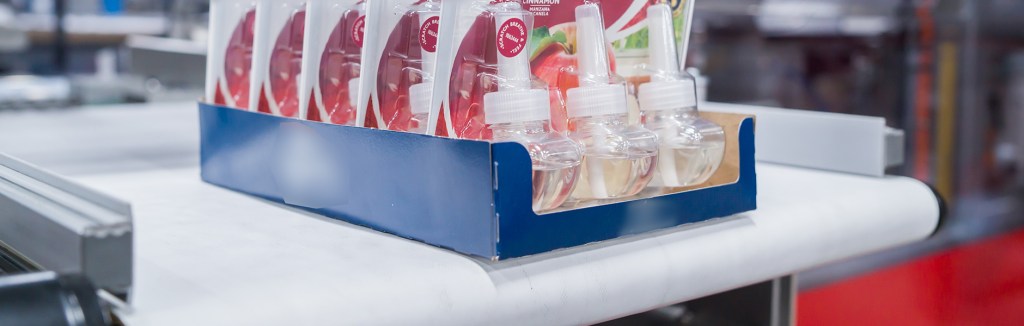

The TT-60TG high-speed tray packer is an intermittent motion high-speed blister tray packer that can reach speeds up to 35 trays per minute. Designed and built for blister tray packing, it is perfect for display packaging and shelf-ready packaging of air freshener plug-in blisters, soap blisters, and similar household products.
This automatic tray packer allows you the packaging automation process and blister tray loading. Shelf-ready packaging gives your product option to be featured on any market shelf for selling, or in display purposes.
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg-speed.png?w=150)
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg_traypackermachine.png?w=455)

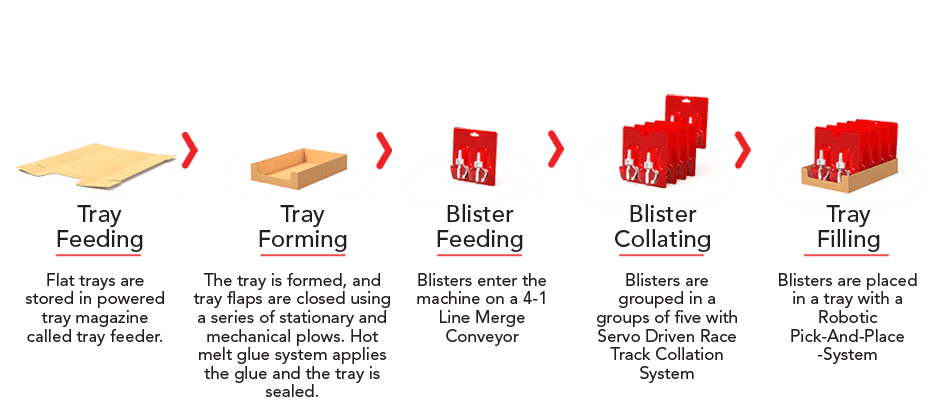

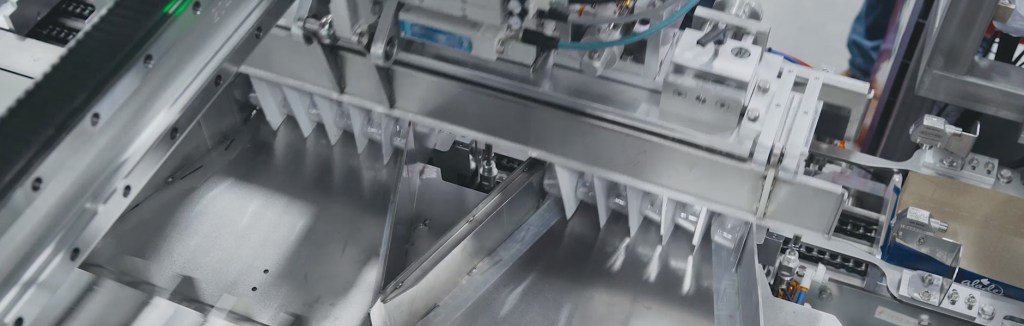

PRODUCT CARTONING PROCESS
![](https://www.itape.com/tminn/wp-content/uploads/sites/5/2023/05/backgroundimage2.jpg)
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/blisterfeeding.png?w=940)
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg_logo.png?w=293)
TECHNICAL
SPECIFICATION
TYPE | Tray Packer |
MODE | Intermittent Motion |
SPEED | 35 Trays Per Minute |
PRODUCT INFEED | Conveyor with race track collation system |
DIMENSIONS | Length: 150” Width: 70” Height: 71” |
CONTROLS | Allen Bradley PLC |
DRIVE | Allen Bradley Servo Motors, Line Shaft |
POWER REQUIREMENTS | 480 V, 3 Phase, 50Hz |
AIR REQUIREMENTS | 12.0 CFM @ 60 psi |
CARTON STYLE | Pre-Broken, Glue Sealed Display Tray |
TRAY PACKER FOR DISPLAY AND SHELF-READY PACKAGING
The TT-60TG high-speed tray packer supports multiple trays and product sizes and features quick and easy servo-assisted changeover. This secondary tray packaging machine allows you to high-speed tray loading without sacrificing valuable floor space. Tray closing is achieved using a series of stationary and mechanical plows and a hot melt glue system. The sensor system detects the correct amount of blisters in a tray or rejects the tray. Open flap detection and rejection system is also included. Stainless steel construction and simple open design allow for easy washdown of all exposed surfaces.

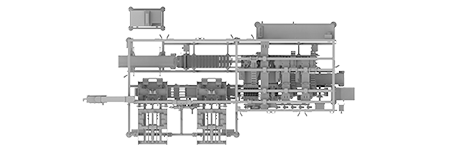

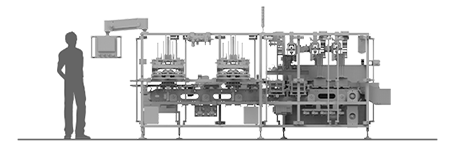

DIMENSIONS & FLOOR PLAN
TT-60TG features compact overall footprint so you can rest assured it will fit your floor space.
Reliable and portable with simple operation and user friendly interface, TT-60TG will be up and running in no time.
Built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks, TT-60TG is powerful and efficient tray packer that meets the highest standards with state-of-the-art simplicity.
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg_topview.png?w=455)
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg_sideview.png?w=455)
![](https://www.itape.com/tminn/wp-content/uploads/sites/5/2023/05/redbanner_bacwards.png)
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-60tg_whitelogo.png?w=293)
CAN BE INTEGRATED WITH
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tetristack_palletizers.png?w=455)

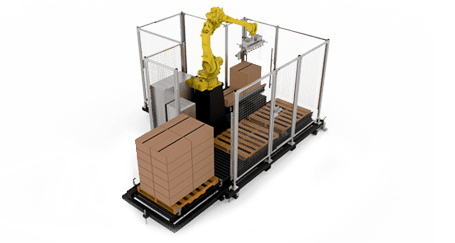

PALLETIZERS
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/roo-100_image.png?w=455)

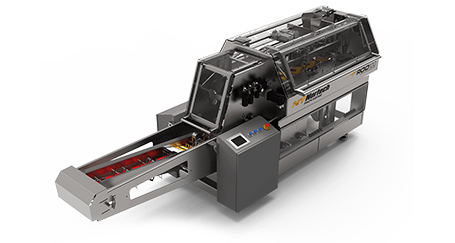

POUCH MACHINES
